LED Aircraft Warning Lights , Tower Obstruction Lighting White Available Colors

Name: LED Aircraft Warning Lights Tower Obstruction Lighting White Available Colors
Brand: ANNHUNG
Price: 1 USD

LED Aircraft Warning Lights , Tower Obstruction Lighting White Available Colors Manufactures

Brand Name : ANNHUNG

Model Number : AH-MI-A2

Certification : FCC, CE, ICAO, FAA

Place of Origin : Guangdong, China

MOQ : 1

Price : 1-899usd/pc

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 1000pieces for one month

Packaging Details : 1 piece/box

Light Source : CREE high intensity LED

Available Colors : White

Intensity(cd) : 20000cd±25%(Daytime) 2000cd±25%(night)

Horizontal Output(degrees) : 360

Vertical Divergence(degrees) : 3

Flash Characteristics : 40-60 flashes per minute

Operation Mode : 24hours operation

LED Life Experience(hours) : >100,000

Operating Voltage : DC(12-48VDC) or AC(110-240VAC)

Power(W) : 15(Daytime) 10(Night)

Body Material : Polycarbonate

Base Material : Die-casting aluminum

Weight(kg) : 5

Product Life Expectancy : 5

Waterproof : IP66

Name : LED Aircraft Warning Lights , Tower Obstruction Lighting White Available Colors

Contact Now

LED Aircraft Warning Lights , Tower Obstruction Lighting White Available Colors
Aircraft warning light. LED airport lamp. medium intensity. red Steady-burning obstruction beacon. compliant with ICAO,FAA,CAAC

Applications

This product is mainly used on the top of high-rise building or structures, e.g. Television transmitting tower, Broadcast Tower, High-rise Building, Tower Crane, and cable stayed bridge communications Tower etc which
height is between 105 meter and 150 meter so that it can play a warning role in potentially hazardous obstructions to air traffic flashing white safety light.

Main Parameter

Description	Parameter
Mode	AH-MI-A2
Light intensity	2,000cd ±25%(Night),20,000cd ±25%(Daytime)
Flash rate	Flashing mode(40-60times/minute)
Light source	LED
Service life of LED	≥ 100,000hours
Operating voltage	AC220V (option voltage, eg. AC120V, AC110V, DC48V)
Power consumption	20W(Night), 60W(Daytime)
Overall size(mm)	Φ236 by 202
Installation size(mm)	Φ190 by M10
Vertical degree	3°
Horizontal degree	360°
Material
Housing	High borosilicate glass
Base	die casting aluminum
Weight	6Kg
Emitting color	White (other color can be customized)
Ambient temperature	-40℃~+60℃
Wind load	80m/s
Protection standard	IP67

Function

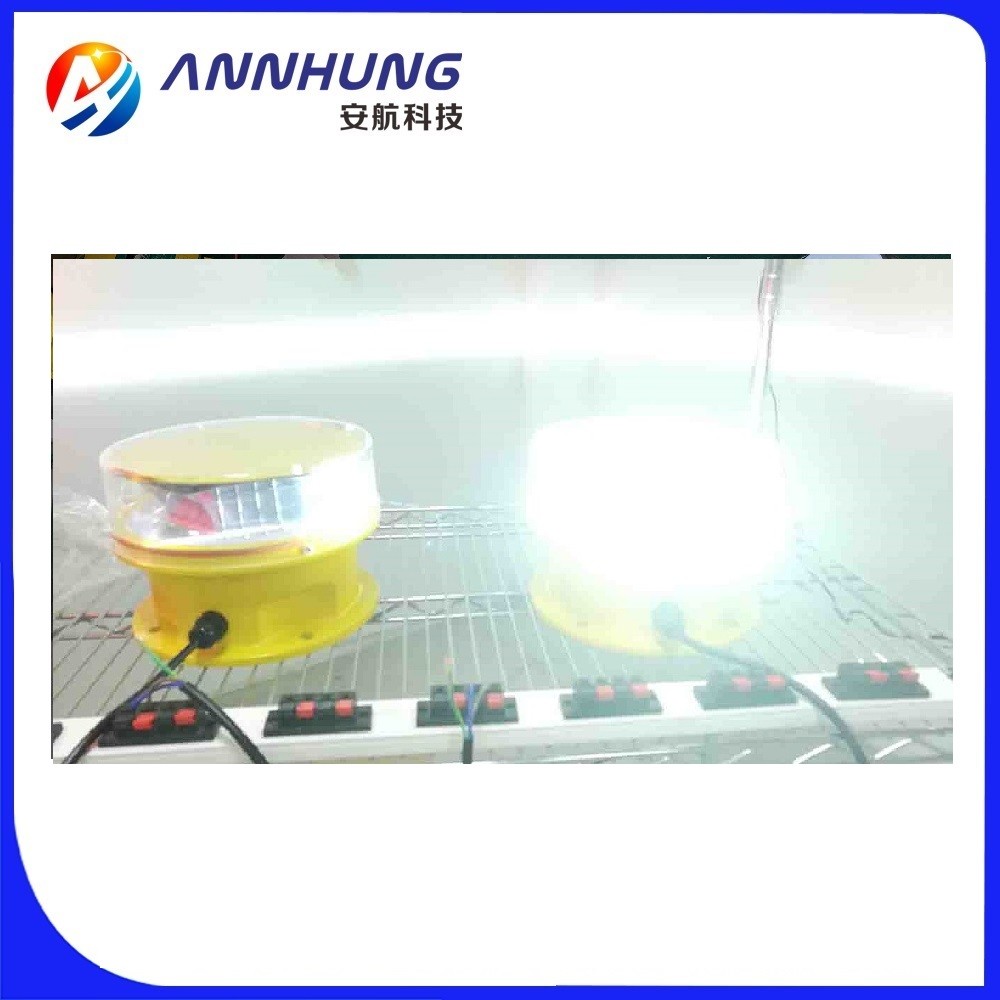

This is Single light with Photocell. It can work automatically all day by photocell. This light can change intensity automatically .During the day, White Flashing, light intensity is 20,000cd;At night, White Flashing, light intensity is 2000cd.

Advantages

1. lightweight low wind built-in photocell and monitoring-no additional power supply
2. Integrated automatic flash synchronisation beam optical design
3. high accuracy light beam optical design
4. High borosilicate glass material with good thermal stability, high transmittance.
5. Built-in circuit protect LED, extremely reliable and cost saving.
6. Shockproof and corrosion resistant. It can be used in very poor conditions.
7. International-advanced cold LED with low power consumption, high brightness and service life of light source reaching 100000hours.
8. Resistant to heavy rain or storms.
9. Free maintenance and aluminum alloy Material.
10. Five year warranty
11. low power consumption and low cost of ownership.

LED Aircraft Warning Lights , Tower Obstruction Lighting White Available Colors

Compliance

Medium-intensity Type A and FAA L-865
Medium-intensity Type A Aviation Obstruction Light, ICAO Annex 14 Volume 1,'Aerodrome Design and Operations’ Forth edition July 2004,table6.3

Company Information

Shenzhen Anhang Technology Company Limited is a high technology enterprise engaging in research, production, sales and after -sales services for a wide range of Aviation Obstruction Light,Aircraft Warning Light,Helipad Light, LED Marine Lanterns,LED Bulb and Aircraft Warning Sphere.We are a domestic market leader in the field of navigation lights and a supporter of green and safe emissions. Our products are widely used in Civil Airports, Helipads, Communication Towers, Factory,Power Plant Chimneys, Television Tower, Port, Bridges, and High-rise buildings, Buoyage in sea, etc. Website: www.annhung.com www.ahicao.com

Datasheet download: download AH-MI-A2 LED Medium-intensity Type A L865...
