LED Solar Aviation Obstruction Light Twin / Dual Low Intensity ICAO FAA L810

Name: LED Solar Aviation Obstruction Light Twin Dual Low Intensity ICAO FAA L810
Brand: Annhung
Price: 1 USD

LED Solar Aviation Obstruction Light Twin / Dual Low Intensity ICAO FAA L810 Manufactures

Brand Name : Annhung

Model Number : AH-LS-LD

Certification : CE, ISO9001, ICAO

Place of Origin : Shenzhen, China

MOQ : 1 Piece

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram, L/C

Supply Ability : 1000 pieces per month

Delivery Time : 2-15 days

Packaging Details : Plastic bag with Paper Carton

Name : LED Solar Aviation Obstruction Light Twin / Dual Low Intensity ICAO FAA L810 32.5cd

Standard : FAA L810 ICAO ANNEX 14

Light intensity : 32.5cd

Color : Red

Mode : Steady/Flashing adjustable

Main-standby : When main lamp fail, standby lamp turn on automatically

Contact Now

LED Solar Aviation Obstruction Light Twin / Dual Low Intensity ICAO FAA L810

This LED Low-intensity Solar-Powered Aviation Obstruction light is adopting insert high efficient solar panels integrated design, cooperate with solar dedicated lithium ion battery as power supply. There are two lamps on two arms, one is main lamp, another is standay. When main aircraft warning lamp fail, standby aircraft warning light turn on automatically. 3/4inch thread hole underbase is very suitable for pole mounting.

Product Descripton

SPECIFICATIONS	AH-LS-LD Low-intensity Double Solar Aviation Obstruction Light
Light Characteristics
Light Source	LED
Available Colors	Red. Other colors are available if need, including IR
Intensity(cd)	＞10cd
Horizontal Output(degrees)	360
Vertical Divergence(degrees)	≥10
Flash Characteristics	Flashing 20FPM or Steady
Operation Mode	Dusk-to-dawn Automatically as standard.
	24hours operation as option
	Main-standby mode
LED Life Experience(hours)	>100,000
Electrical Characteristics
Operating Voltage	3.7Vdc
Power(W)	1
Circuit Protection	Integrated
Solar Characteristics
Solar Module Type	Monocrystalline Silicon
Output(watts)	0.55
Charging Regulation	Microprocessor controlled
Battery Characteristics
Battery type	Lithium ion battery
Battery Capacity (Ah)	6
Nominal Voltage (V)	3.7
Battery Service Life	Average 3 years
Autonomy (hours)	Steady: 85
	Flashing: 190
Physical Characteristics
Lamb Body Material	Aluminum Alloy
Base Material	Powder-coated Die-casting aluminum
Installation Size(mm)	140×140×M6
Overall Size(mm)	162 by 162 by 160
Weight(kg)	3
Product Life Expectancy	Average 5 years
Environmental Factors
Humidity	0~100%
Wind Speed	80m/s
Waterproof	IP68
Compliance
ICAO	Annex 14 Volume 1,'Aerodrome Design and
	Operations’ Forth edition July 2004, table 6.3
FAA	Low intensity Type B FAA L-810
Options Available	Charging port
	Remote Control
	Flashing rate
	Auto/Manual toggle switch
	Powder-coated color
	NVG(Night Vision Goggles) compatitble LED

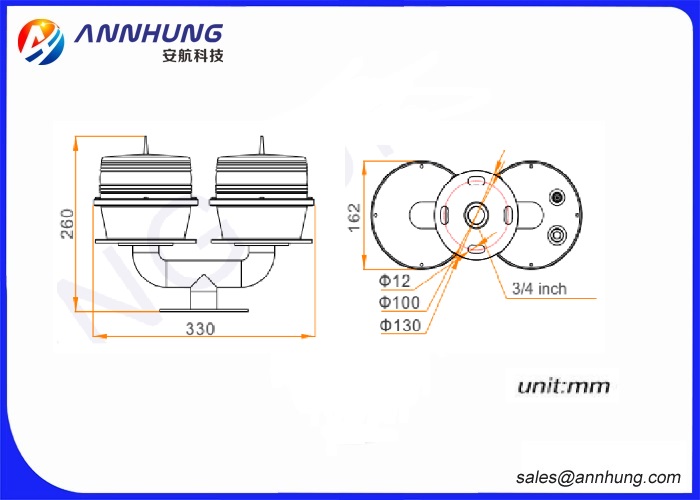

Dimension Drawing

LED Solar Aviation Obstruction Light Twin / Dual Low Intensity ICAO FAA L810

Packaging & Delivery

Packaging - Paper carton 1-8 piece/box.
Delivery - In 2-15 days after payment.

Company Information

Anhang Technology founded in year 2009, is a high-tech specialized enterprise focusing on research, production, sales and after-sales service of aviation obstruction light, aircraft warning light, helipad lighting, solar airfield lights, marine navigation lanterns. Our facory located in Shenzhen City, China, have more than 10 years manufacturing experience for clients from whole world. Till now, we've got 42+ patent and passed international and domestic certification, ie: CE, ICAO, FAA, CAAC, IALA, ROHS, ISO9001, ISO14001, ISO45001,etc.

All aviation obstruction light, aircraft warning lights, helipad lighting, solar airfield lights are fully complied with standards of ICAO(International Civil Aviation Organization), CAAC(Civil Aviation Administration of China), FAA(Federal Aviation Administration). The marine navigation lanterns are produced according to the standards of IALA (International Association of Lighthouse Authorities).
