AC220V Double LED Aviation Obstruction Light With Low - Intensity Type
Low-intensity Double Aviation Obstruction , Base with high intensity aviation aluminum casting, Fully sealed structure; Light source adopt with independent research and development dedicated LED chip, which have the specific of low power consumption and long long life; Lampshade adopt with PC material, it can resist corrosion, anti-UV, anti-shock; management circuit with Strong lightning protection and With the surge protection device, which can adopt to extremity bad working environment. This lamp has a photocell inside, it can automatically turn on when light intensity less than 50LUX,and turn off when above 50Lux.
Product Application
Tall Building , Chimney, TV tower etc.
Datasheet: AH-LI-D Low-intensity L810 Double Aviation Obstruc...
Packaging & Delivery
Packaging: Plastic bag with paper carton.
Delivery: In 2-30 days after payment.
1. 2 years full warranty, 5 years maintenance since the purchasing date.
2. Since the purchasing date, full warranty from 1st year to 2nd year, free maintenance cost and material cost.
3. Since the purchasing date, maintenance from 3rd year to 5th year, free maintenance charge.
Product Descripton
| Description | Parameter |
| Working way of two lights | -Two light flashing by Main(duty)-standby way, Two lights flashing at the same time or two lights flashing 1.5 second interval(Flashing mode, three ways)
-Two light working by Main(duty)-standby way, Two lights working at the same time.(Steady-burning mode, two ways) |
| Light source | LED (≥100,000h) |
| LED emitting color | Aviation red |
| Working mode | Steady-burning mode or Flashing mode(20-60times/minute) |
| Working voltage | AC220V (option voltage, eg. AC120V, AC110V, DC48V) |
| Power consumption | 4W |
| Intensity | ≥32.5cd(Option 10cd,50cd,80cd,100cd) |
| Operating temperature | -40℃~+70℃ |
| IP Protection | IP65 |
Dimension Drawing

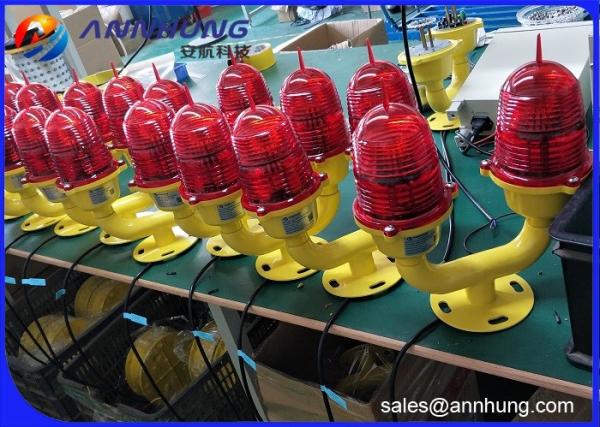

Product Picture
