Colorful Led Aircraft Lights With Die Casting Aluminum Anti - Knock Protection
Advantage
1.International advanced solar panel reaching at least 10 years service life.
2. Easy installation and relocation: no specialized work crew required, limited air traffic disruption, and lights are immediately operational .
3. Strong anticorrosion , Rain and Snow, anti-knock protection and UV protection.
4. International-advanced cold LED with low power consumption, high brightness and service life of light source reaching 100000hours.
5. Clean, renewable, green and reliable energy source.
6. Dusk-to-dawn operation: Built-in photocell inside light can let lightwork at night and close during the day automatically.
7. More than 5 days autonomy.
8. Recyclable batteries with the lightest environmental.
Main Parameter
| 1.Mode: | AH-SA/ B |
| 2.Light intensity: | ≥10cd |
| 3.Working mode: | Steady-burning mode or Flash mode |
| 4.Light source: | LED,100,000hours service life |
| 5.Solar panel: | DC3.7V,monocrystalline silicon |
| 6. Material: | -Housing: Polycarbonate
-Base: die casting aluminum |
| 7.Autonomy(without sunlight): | at least 5 days(Option 20days) |
| 8.Battery: | Lithium ion battery, replaceable |
| 9.Overall Size(mm): | 162 by 162 by 160 |
| 10.Installation Size(mm): | 140 by140 by M6 |
| 11.Net Weight: | 1Kg |
| 12.Emitting Color: | Red, green, white, yellow/ white, yellow/ white, yellow/ white, red/ white( Customized) |
| 13.Ambient Temperature: | -40℃~+60℃ |
| 14.Wind load: | 80m/s |
| 15. Protection Standard: | IP68 |
| 16. Optional: | charging port |
Function
1.Push button interface for local ON/OFF control. Toggle switch interface for steady-burning/flashing working mode.
2. Optional Battery Charge port: 100~240VAC
3. Optional NVG-compatible infrared (IR) LEDs
Application
Emergency operations, Helipads, Touchdown and Lift- off area ( TLOF) , Final Approach and Take- off area ( FATO) , Taxiway lighting, Runway edge lighting – (ICAO Annex 14), Portable or expedited airfield lighting, Threshold lighting and obstruction lighting.

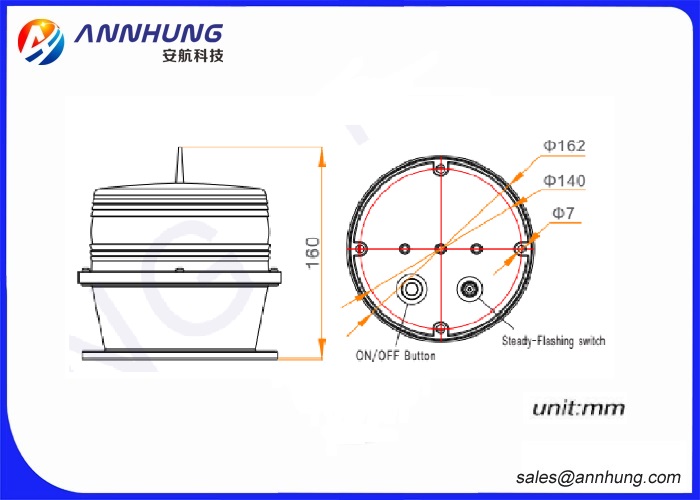

Dimension Drawing

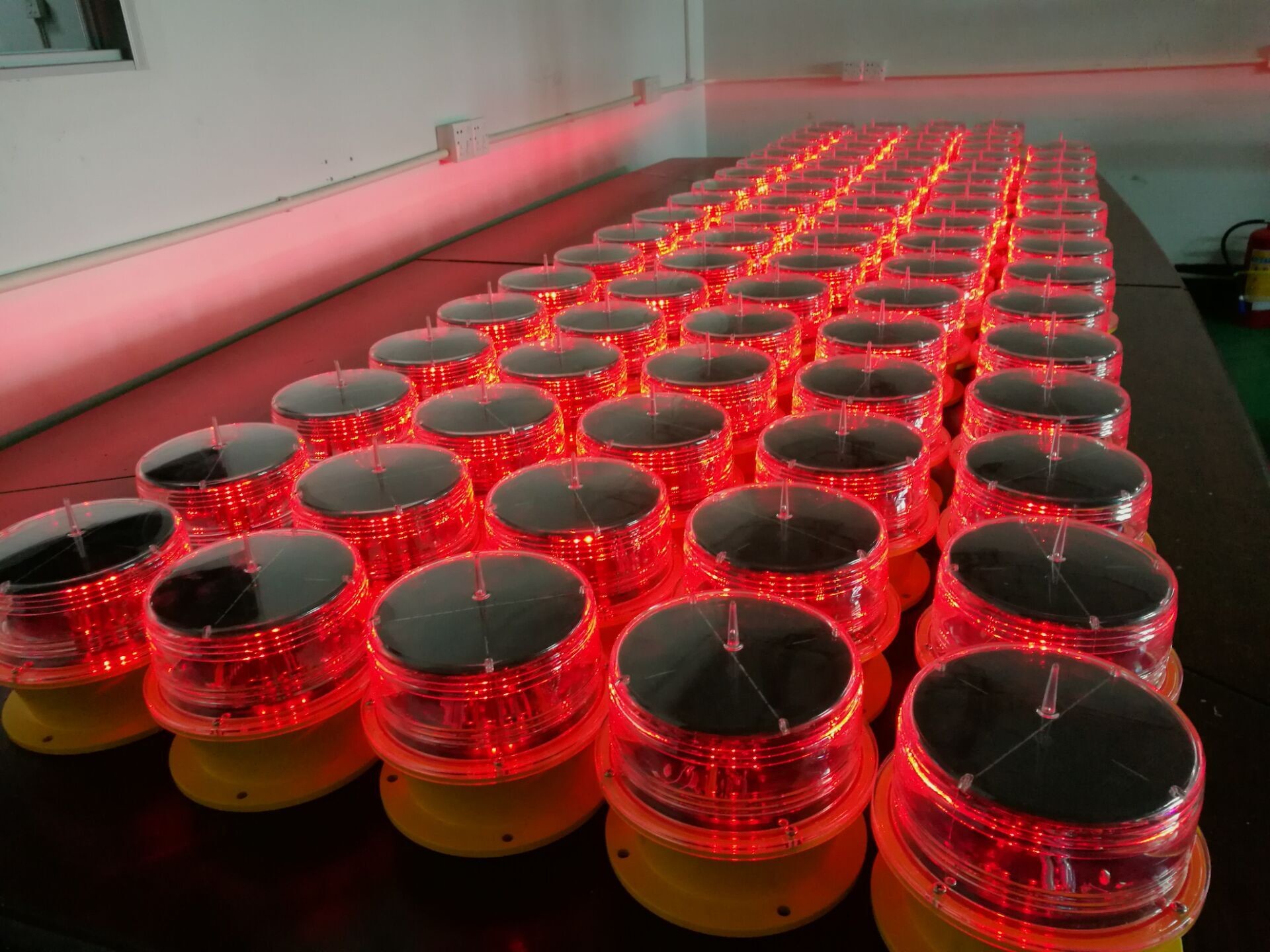

Product Picture
Company Information
Anhang Technology founded in year 2009, is a high-tech specialized enterprise focusing on research, production, sales and after-sales service of aviation obstruction light, aircraft warning light, helipad lighting, solar airfield lights, marine navigation lanterns. Our facory located in Shenzhen City, China, have more than 10 years manufacturing experience for clients from whole world. Till now, we've got 42+ patent and passed international and domestic certification, ie: CE, ICAO, FAA, CAAC, IALA, ROHS, ISO9001, ISO14001, ISO45001,etc.
All aviation obstruction light, aircraft warning lights, helipad lighting, solar airfield lights are fully complied with standards of ICAO(International Civil Aviation Organization), CAAC(Civil Aviation Administration of China), FAA(Federal Aviation Administration). The marine navigation lanterns are produced according to the standards of IALA (International Association of Lighthouse Authorities).
Download datasheet of Company Profile : Download Shenzhen Anhang Company Profile.pdf
