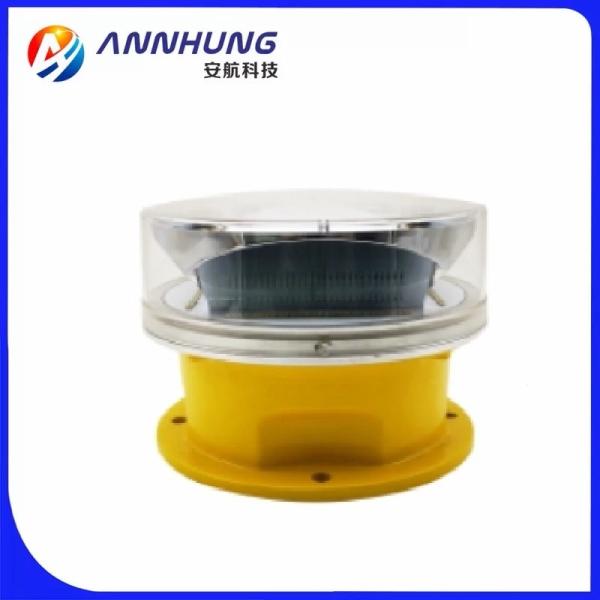

IP66 Waterproof LED Aviation Obstruction Light 20W Medium Intensity Type A L865

Brand Name : ANNHUNG

Model Number : AH-MI-A2

Certification : ICAO, ISO9001, CE

Place of Origin : China

MOQ : 1

Payment Terms : L/C, T/T, Western Union, MoneyGram, D/A, D/P

Supply Ability : 2000pcs per month

Delivery Time : 5-15days

Color : White

Intensity(cd) : ≥20000cd (Daytime) ≥2000cd(Night)

Flash Characteristics : 20-60 flashes per minute(factory setting: 40fpm)

LED Life Experience(hours) : >100,000

Operating Voltage : DC(12V, 24V, 36V, 48V) or AC(110-240VAC)

Power(W) : ≤20W(40fpm)

Mounting : 190×190×θ12

Dimension(mm) : 229×229×168

Weight(kg) : 4

Product Life Expectancy : 5 years Plus

Waterproof : IP66

Name : LED Medium-intensity Type A L865 Aviation Obstruction Light

Contact Now

This LED Medium-intensity Type A L865 Aviation Obstruction Light flashing white color, designed for marking top of obstacle which height is between 105-150 meters.

Ultra high intensity CREE LED is used for the light source ensure the long life experience and good performance. Self-designed reflector is used to converge light, which could reach the standard light intensity with as less as the power consumption.

Compliance

  • ICAO Annex 14 Volume 1, Seventh edition, 2016, table 6.3 Medium Intensity Type A Obstruction Light

  • FAA L-865

    Features

    Electrical

  • CREE ultra high intensity LED as light source saving power consumption and maintenance than incandescent light or halogen lamp

  • Power supply available in DC(12V, 24V, 48V) or AC(110-240VAC)

    Physical

  • < >nique design and UV protected polycarbonate reflector for converging light

    UV protection Powder coated bright yellow color base make better visibility

  • Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection

  • IP66 Waterproof LED Aviation Obstruction Light 20W Medium Intensity Type A L865 Special valve installed beside the base to make sure the air could go through but water is avoid, so that the whole light temperature won’t be high

    System design

  • Built-in photocell for day/night operation(dusk to dawn operation)

  • Surge and lightning protection

    Optional

  • Dry contact Alarm output for remote monitoring

  • GPS synchronization

  • Infrared LED for pilot using NVG

    Application

  • AH-MI-A2 medium-intensity light is used on the top of the High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc when the obstacle height is between 105-150 meters, and most time work with low intensity lights & medium intensity type B light installed on the lower place.

SPECIFICATIONS AH-MI-A2 LED Medium-intensity Type A L865 Aviation Obstruction Light
Light Characteristics
Light Source CREE high intensity LED
Available Colors White
Intensity(cd) ≥20000cd (Daytime)
≥2000cd(Night)
Horizontal Output(degrees) 360
Vertical Divergence(degrees) 3
Flash Characteristics 20-60 flashes per minute(factory setting: 40fpm)
Operation Mode Dusk-to-dawn Automatically as standard.
24hours operation as option
LED Life Experience(hours) >100,000
Electrical Characteristics
Operating Voltage DC(12V, 24V, 36V, 48V) or AC(110-240VAC)
Power(W) ≤20W(40fpm)
Circuit Protection Integrated
Physical Characteristics
Body Material UV protected Polycarbonate
Base Material Powder-coated Die-casting aluminum
Mounting 190×190×θ12
Dimension(mm) 229×229×168
Weight(kg)

4
Product Life Expectancy 5 years Plus
Environmental Factors
Humidity 0%-100%
Wind Speed 80m/s
Waterproof IP66
Compliance
ICAO Annex 14 Volume 1,'Aerodrome Design and
Operations’ Seventh edition 2016, table 6.3
Medium-intensity Type A White Obstacle Light
FAA L-865
Options Available
GPS sync flashing
Infrared LED compatible for NVG (Night
Vision Goggles)
Dry contact alarm output
RS485 communication
Bird deterrent spike
