This 2000cd Solar Aviation Obstruction Light flashing red color, designed for marking top of obstacle which height is between 45 to 105 meters.
There are a red lamp and a white lamp in the housing, one is the main lamp, the another one is the standby lamp. When main lamp fail, standby lamp turn on automatically.
Product detailed information:
Compliance; IALA E-200-1
Electrical
Based on LED technology, and its color complies to IALA Recommendations E-200-1.
LED technology reduces maintenance time & costs
Working voltage: 110-240vac, 12vdc, 48vdc
Physical
Integrated design, enabling a rugged and completely waterproof seal capable of prolonged and deep immersion (IP68).
PC housing,UV resistance, shockproof and corrosion proof.
Bird deterrent spike
Powder coated die casting aluminum base
System design
Built-in photocell for day/night operation(dusk to dawn operation), better save energy design.
Optional
► Rotary switches for adjust 256 flash characteristics comply with IALA
► User-adjustable operation mode to toggle between dusk-till-dawn & 24hr operation
► Android APP Bluetooth remote control
► Infrared remote control
► GSM Monitoring
► RS232 485 port
► GPS sync flashing
► Solar panel & battery
► Spirit level
Application
AH-LS/P-2 LED Marine Navigation Lantern is used on buoy, light house and any other off shore site for marine/river safe navigation.
More product parameter:
| Light Source | LED |
| Emitting Color | Red, Green, Yellow, White |
| Intensity(cd) | 2,000cd(Night), 20,000cd(Daytime) |
| Visible Range(NM) | 6-15 (AT@0.74) |
| Flash Characteristics | IALA 256 Light characters adjustable |
| Operation Mode | Dusk-to-dawn Automatically (Built-in photocell) |
| Body Material | UV protected Polycarbonate |
| Base Material | Powder-coated Die-casting aluminum |
| Overall Size (mm) | 220*220*233 |
| Installation Size | 190×190×Φ12 |
| Product Life Expectancy | Average 5 years |
| Humidity | 0~100% |
| Wind Speed | 80m/s |
Product detailed imagine:
Delivery:

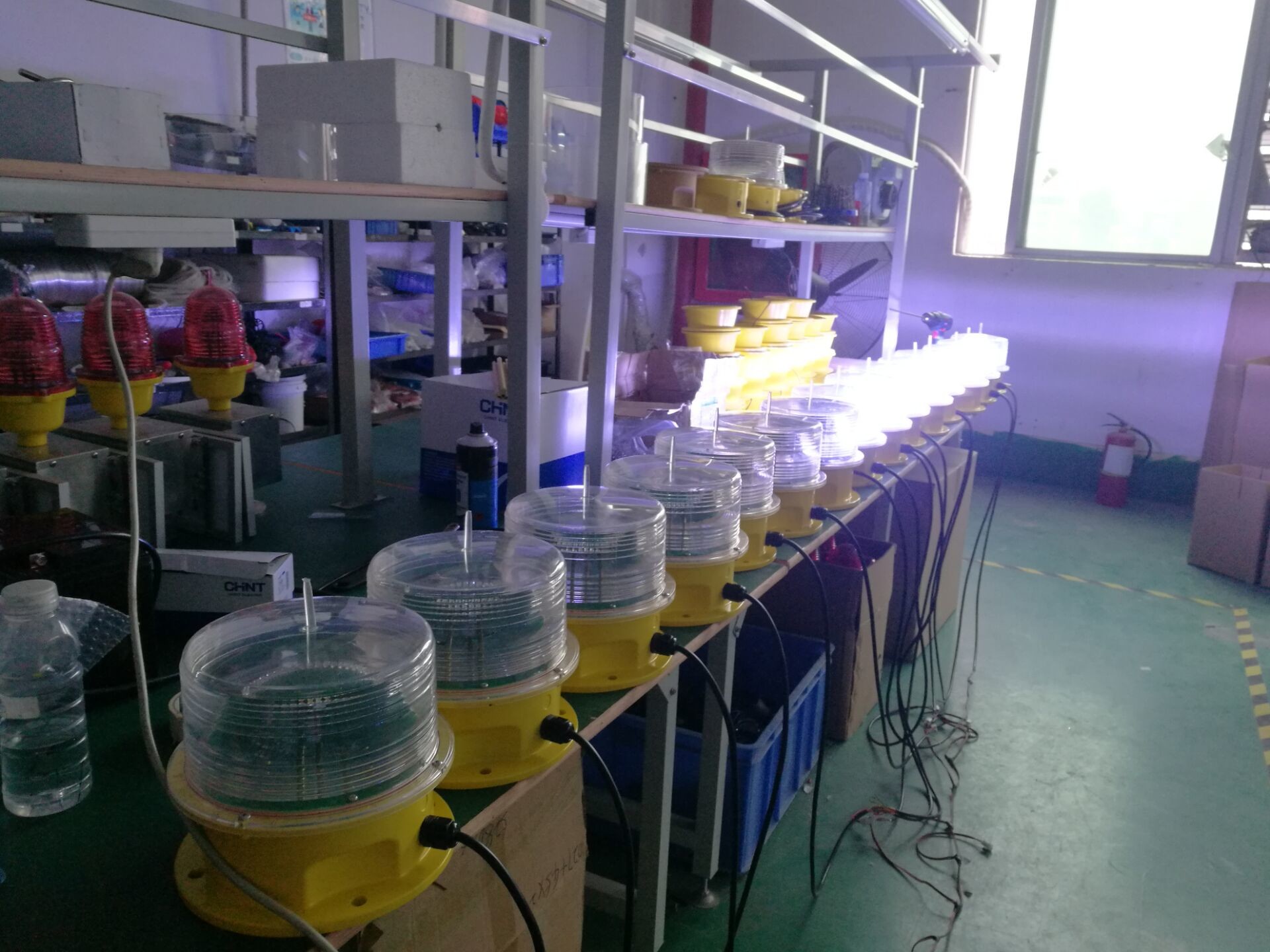

Anhang Technology Company Limited is a specialized enterprise focusing on research, production, sales and after-sales service of aviation obstruction light, and have 8 years manufacturing experience for clients from whole world. The functions can be customized according request.
Product Tags:
|
|

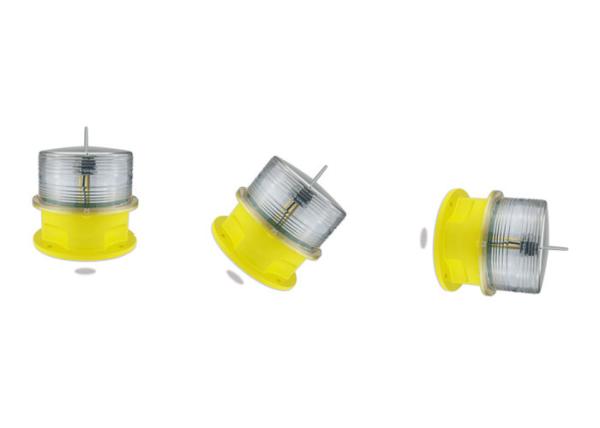

IALA 256 Flash Marine Lanterns IP68 Waterproof GSM Buoy 12V Yellow Appearance Images
|
