ICAO High Intensity Obstruction Light, FAA L865 Type A Marking Telecom Towers Aviation Warning Light Flashing White

Name: ICAO High Intensity Obstruction Light FAA L865 Type A Marking Telecom Towers Aviation Warning Light Flashing White
Brand: Anhang
Price: 100 USD

Brand Name : Anhang

Model Number : AH-HI-AO

Certification : CE, RoHS

Place of Origin : China

MOQ : 1

Price : 100-800

Payment Terms : L/C, T/T, Western Union

Supply Ability : 1000 pieces per month

Delivery Time : 5 days

Packaging Details : Carton

Light Source : CREE high intensity LED

Available Colors : White

Horizontal Output(degrees) : 360

Vertical Divergence(degrees) : 3-7

Flash Characteristics : 40-60 flashes per minute

Operation Mode : 24hours operation, 3 different modes

LED Life Experience(hours) : >100,000

Operating Voltage : DC(48VDC) or AC(110, 240V)

Average Power(W) : 30W

Contact Now

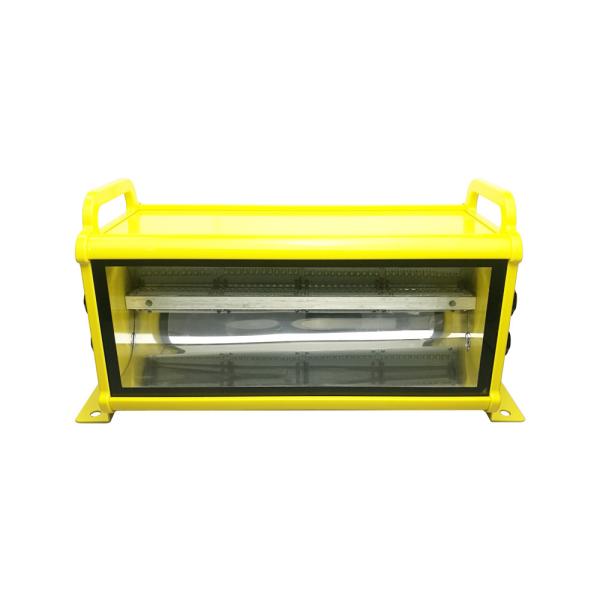

This High-intensity Type A Aviation Obstruction Light flashing white color 24 hours and designed for marking top of obstacle that exceed 150 meters in height.Ultra high intensity CREE LED is used for the light source ensure light’s long life experience and good performance. Self-designed reflection board ensure less LED could emitting brighter light.

Compliance

** ICAO Annex 14 Volume 1, Sixth edition, 2013, table 6.3 High Intensity Type A Obstruction Light
** FAA L-856
Electrical
* CREE ultra high intensity LED as light source saving power
* Power supply available in DC(48V) or AC(110V, 240V)
Physical
 Unique design and UV protected polycarbonate lens for converging light and saving LED power
 UV protection Powder coated bright yellow color base make better visibility
 Base material is powder coated die-casting aluminum which has strong corrosion resistance, Shock and Vibrations protection
 Special valve installed beside the base to make sure the air could go through but water is avoid, so that the whole light temperature won’t be high to destroy the light
System design
* Built-in photocell for day/twilight/night operation
* Surge and lightning protection
Optional
 Alarm contact for remote monitoring
 Infrared LED for pilot using NVG
 GSM cellphone monitoring
 RS485 communication part for monitoring
 User adjustable flashing rate(40, 50, 60 flashes/minute)
 GPS synchronization
Application
AH-HI/A0 High-intensity light is used on the top of the High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc when the obstacle height is more than 150meter, and most time work with low intensity lights & medium intensity light installed on the lower place.

More detailed parameter:

Body Material	Polycarbonate (Tempered glass as optional)
Base Material	Powder coated die-casting aluminum
Mounting	470×120×θ12
Dimension(mm)	510196245
Weight(kg)	9
Product Life Expectancy	5 years Plus
Humidity	0%-100%
Wind Speed	80m/s
Waterproof	IP67
ICAO	Annex 14 Volume 1,'Aerodrome Design and Operations’ Sixth edition 2016, table 6.3 High-intensity Type A White Obstacle Light
FAA	L-856
	NVG(Night Vision Goggles) compatible LED
Options Available	GSM Monitoring, GPS Sync Flashing, Dry Contact alarm(NO COM NC)
	User adjustable flashing rate (40, 50, 60)

ICAO High Intensity Obstruction Light, FAA L865 Type A Marking Telecom Towers Aviation Warning Light Flashing White
