LED Aviation Obstruction Light 5 Watt red Obstruction Light , FAA L810 Aircraft Warning Lights On Towers

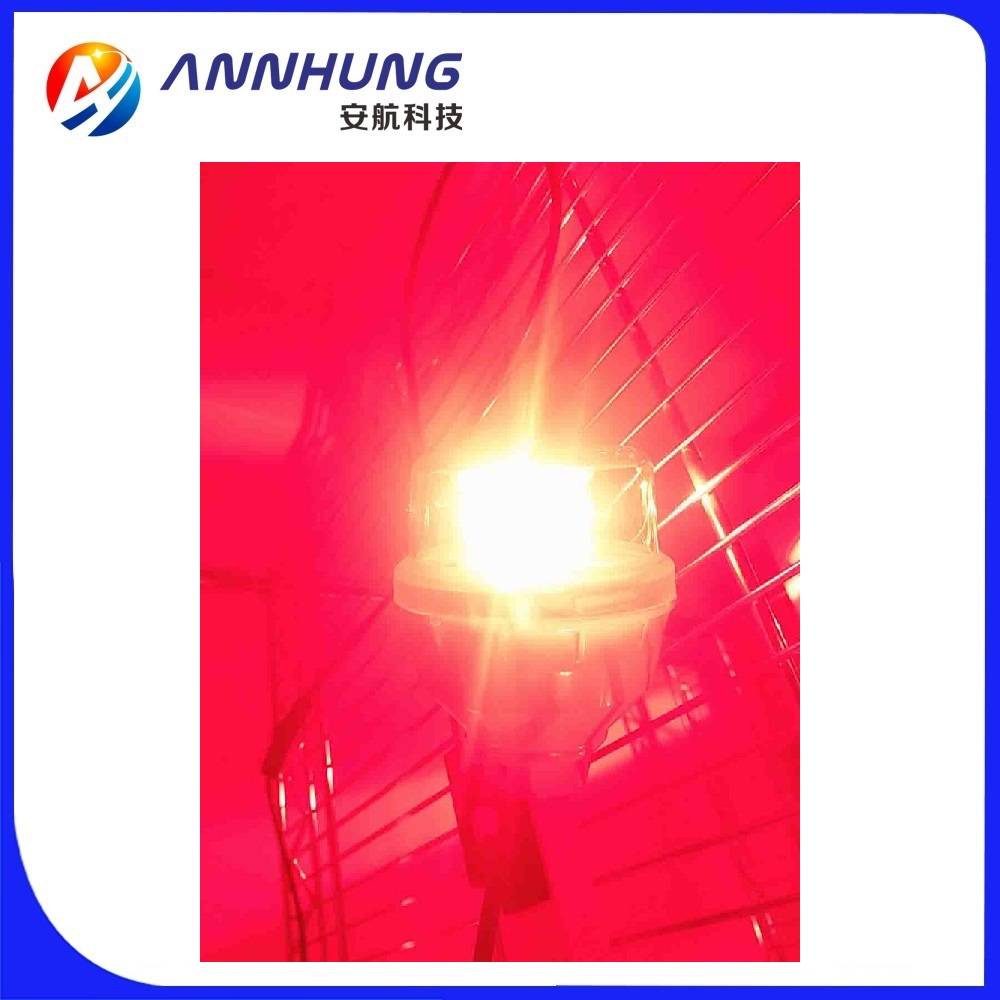

This LED 32cd Low-intensity Aviaion Obstruction Light Double light is a steady burning aviation obstruction light designed for marking top of high obstacle that do not exceed 45 meters in height. Products performance can be customized for different usages.
Main-standby mode ensure the high obstacle is always marked even one light fail. It's provide better protection for your buildings. When main lamp fail, the standy lamp turn on automatically.
Compliance:
** ICAO Annex 14 Volume 1, Seventh edition, 2016, table 6.3 Low Intensity Type A / B /E Obstacle Light
** FAA L-810
Electrical
CREE LED, make sure LED keep bright while use for long time
Power supply in DC(48V)& AC(110-240VAC), the light could work normally when input 48VDC/110VAC/240VAC
Physical
Bird deterrent spike on top
Unique designed PMMA lens for converging light and good transparency.save your power.
High translucency and anti-UV polycarbonate cover could use 3-5years without yellowing. Better quality for your projects.
UV protection Powder coated bright yellow color base make better visibility and also long life in harsh environments()
Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection
3/4inch thread hole make pole installation easy
No screw fix type - just twist, the cover will be fixed tightly. It's convenient for test.
System design
Built-in photocell for day/night operation(dusk to dawn operation, automatically turn on when background luminance is below 50cd/m2
Steady/20FPM/30FPM/60FPM DIP switches on PCB. Meet your needs to different useages.
Surge and lightning protection
Main-standby mode, when the main light fail, the standby light automatically switch on to ensure the obstacle is always clearly marked.
Optional
Alarm contact(Dry contact- NO COM NC) for remote monitoring
Infrared LED for pilot using NVG. If you are interested, contact me now!
Application
AH-LI-B2 low-intensity safe aviation warning light could be used alone on the top of the High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc when the height is lower than 45m. Compliance FAA L810
More detailed parameter:
| Light Source | LED |
| Available Colors | Red |
| Intensity(cd) | > 32cd (Support customized) |
| Reflector Type | Fresnel Lens |
| Flash Characteristics | Steady/20/30/60fpm adjustable |
| Easy test | just twist, the cover will be fixed tightly |
| Body Material | Polycarbonate |
| Base Material | Die-casting aluminum |
| Mounting | 3/4inch |
| Dimension(mm) | 254*210*90 |
| Weight(kg) | 1.5 |
| Product Life Expectancy | 5 years Plus |
| Humidity | 10%-95% |
| Wind Speed | 80m/s |
| Waterproof | IP66 |
| ICAO | Annex 14 Volume 1,'Aerodrome Design and Operations’ Sixth edition 2013, table 6.3 |
| FAA | L-810 |
