This LED Low-intensity Double Solar Aviation Obstruction light is adopting high efficient mono crystalline silicon solar panel, cooperate with solar dedicated lithium ion battery as power supply. Save your power and better design for you.
There are two lamps on the battery box, one is main lamp, another is standby. When main lamp fail, standby light turn on automatically.

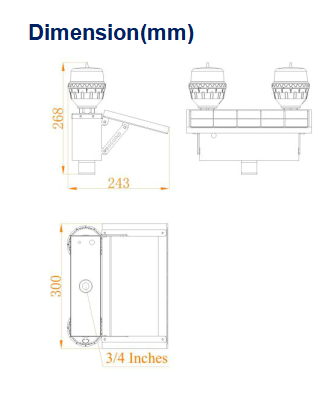

3/4inch thread hole under base is very suitable for pole mounting. Better protection and easy installation.
** Compliance ICAO Annex 14 Volume 1, Seventh edition, 2016, table 6.3 Low Intensity Type A / B / E Obstruction Light
Electrical : LED as light source, life experience >100,000hours, meet your project requirements.
Physical
►With bird needle to prevent bird drop
► UV & vibrations protected polycarbonate lens for converging light
►Stainless steel 304 base, light fastness, resist snow and rain
► Mono crystalline silicon solar panel, conversion efficiency is better than poly crystalline silicon
►Solar panel angel is adjustable
System design
►Solar panel as photocell (Photo diode) for day & night working mode (dusk to dawn mode)
►ON/OFF button make local control easy
►Flashing(20fpm)/steady toggle switch under base
►Main-standby mode
Optional Function
Infrared LED for pilot using NVG(Night Vision Goggles)
GPS sync flashing
External battery charger
Products Application
AH-LS-A2 solar low-intensity light is specialized used on the top of the High Chimney, Telecommunication tower, Wind Turbine where there
is no cable power supply and those facilities which have high requirements on lightning protection.Used alone on the top of obstacle which height is less than 45meter. We have 2 years warrnty, if there is any quantity questions, We wiill solve it.
