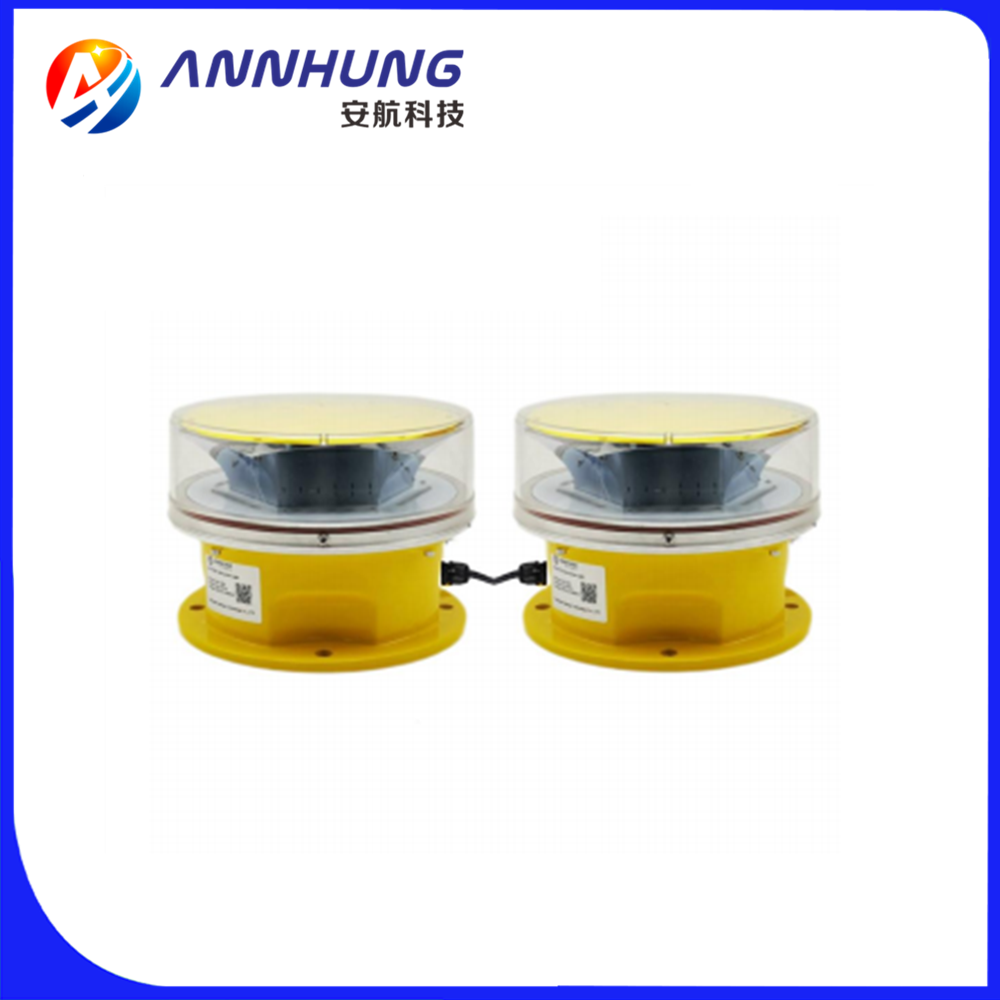

This LED Medium-intensity Type B Aviation Obstruction Light flashing red color, designed for marking top of obstacle which height is more than 45meters. Both lamp working as main-standby, when main lamp fail, standby lamp turn on automatically.
Compliance
ICAO Annex 14 Volume 1, Seventh edition, 2016, table 6.3 Medium Intensity Type B Obstruction Light
Features
Electrical
CREE ultra high intensity LED as light source saving power consumption and maintenance than incandescent light or halogen lamp
Power supply available in DC(12V, 24V, 48V) or AC(110-240VAC)
Physical
Unique design and UV protected polycarbonate reflector for converging light
UV protection Powder coated bright yellow color base make better visibility
Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection
System design
Built-in photocell for day/night operation(dusk to dawn operation)
Surge and lightning protection
Main-standby mode
Optional
Dry contact Alarm output for remote monitoring
Solar Power system
Application
AH-MI-B2-D medium-intensity light is used on the top of the High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc when the obstacle height is 45-105meter, and most time work with low intensity lights installed on the lower place.
| SPECIFICATIONS | Medium-intensity Type B Double Aviation Obstruction Light |
| Flash Characteristics | 20FPM |
| Light Source | LED |
| Colors | Red |
| Horizontal Output(degrees) | 360 |
| Vertical Divergence(degrees) | 3 |
| LED Life Experience(hours) | >100,000 |
| Average Power(W) | 5W |
| Operating Voltage | DC(12V, 48VDC) or AC(110-240VAC) or others |
| Circuit Protection | Integrated |
| Physical Characteristics | |
| Body Material | UV protected Polycarbonate |
| Base Material | Powder-coated Die-casting aluminum |
| Mounting | 190×190×θ12 - 2 lamp |
| Dimension(mm) | 229×229×168- 2 lamp |
| Weight(kg) | 2.5 *2 |
| Product Life Expectancy | Average 5 years |
| Environmental Factors | |
| Ambient Temperature(℃) | -40~55 |
| Humidity | 0~100% |
| Wind Speed | 80m/s |
| Waterproof | IP66 |
| Compliance | |
| ICAO | Annex 14 Volume 1,'Aerodrome Design and Operations’ Seventh edition 2016, table 6.3 Medium-intensity Type B Red Obstacle Light |
| Options Available | |
| | Flashing rate |
| | NVG(Night Vision Goggles) compatible LED |
| | Dry contact alarm(NO COM NC) |
| | RS485 communication |
| | Bird deterrent spike |
