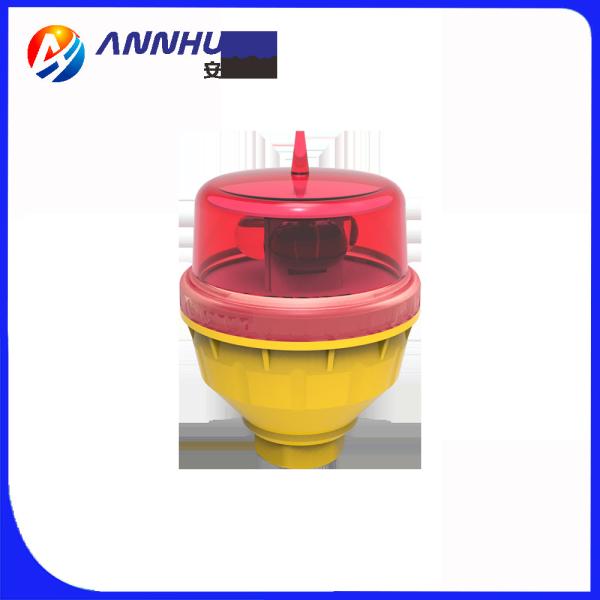

Product Introduction
This Low-intensity light is a steady burning aviation
obstruction light designed for marking top of obstacle that
do not exceed 45 meters in height.
Compliance
ICAO Annex 14 Volume 1, Seventh edition, 2016, table 6.3 Low
Intensity Type A / B / E Obstacle Light
CAAC MH6012-2015 Aviation obstruction light, MH 5001—2013
Aerodrome technical standards
Electrical
3 high power CREE LED, make sure LED keep bright while use
Power supply in DC(48V)& AC(110-240VAC), the light could work
normally when input 48VDC/110VAC/240VAC
LED power supply board includes short circuit and open circuit
protection, Line surge protection by metal oxide varistor
Physical
Bird deterrent spike on top
High translucency and anti-UV polycarbonate cover could use
3-5years without yellowing
UV protection Powder coated bright yellow color base make better
visibility and also long life in harsh environments
Base material is die casting aluminum which has strong corrosion
resistance, Shock and Vibrations protection
3/4inch thread hole make pole installation easy
System design
Built-in photocell for day/night operation(dusk to dawn operation,
automatically turn on when background luminance ＜50cd/㎡
Steady(factory setting)/20FPM/30FPM/60FPM DIP switches on
PCB
Optional
Alarm contact(NO COM NC)for remote monitoring
Infrared LED for pilot using NVG
GPS sync flashing
| Light Source | LED |
| Body Material | Polycarbonate |
| Product Life Expectancy | 10 years Plus |
| Waterproof | IP66 |

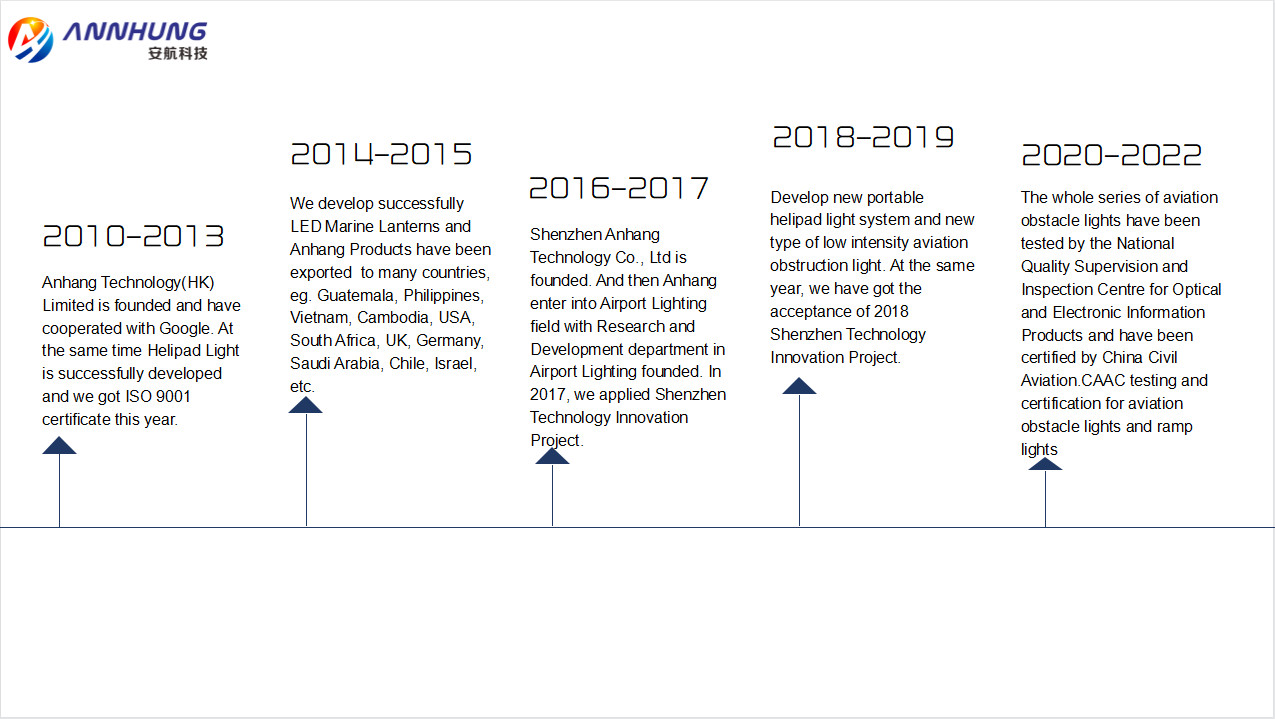

Development History
Certificates
Shipment
Company Information
Anhang Technology founded in year 2009, is a high-tech specialized enterprise focusing on research, production, sales and after-sales service of aviation obstruction light, aircraft warning light, helipad lighting, solar airfield lights, marine navigation lanterns. Our facory located in Shenzhen City, China, have more than 10 years manufacturing experience for clients from whole world. Till now, we've got 42+ patent and passed international and domestic certification, ie: CE, ICAO, FAA, CAAC, IALA, ROHS, ISO9001, ISO14001, ISO45001,etc.
All aviation obstruction light, aircraft warning lights, helipad lighting, solar airfield lights are fully complied with standards of ICAO(International Civil Aviation Organization), CAAC(Civil Aviation Administration of China), FAA(Federal Aviation Administration). The marine navigation lanterns are produced according to the standards of IALA (International Association of Lighthouse Authorities).
