Scope of Application
This product is mainly used on the top of high-rise building or structures, e.g. Television transmitting tower, Broadcast Tower, High-rise Building, Tower Crane, and cable stayed bridge communications Tower etc which height is between 105 meter and 150 meter so that it can play a warning role in potentially hazardous obstructions to air traffic.

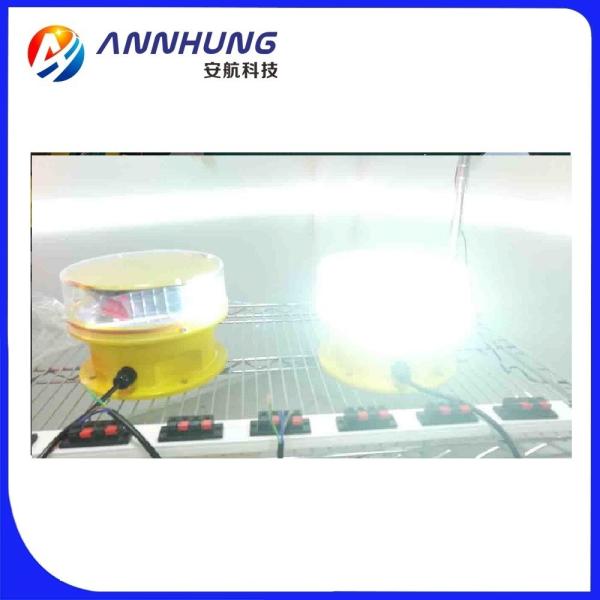

Product Picture
Medium-intensity Type A L865 Aviation Obstruction Light download:download AH-MI-A2 LED Medium-intensity Type A L865...
Parameter
| Description | Parameter |
| Mode | AH-MI-A2 |
| Light Source | LED |
| Available Colors | White colur |
| Intensity(cd) | ≥2,000cd (Night), ≥20,000cd(Daytime) |
| Horizontal Output(degrees) | 360degree |
| Vertical Divergence(degrees) | 3degree |
| Reflector Type | Fresnel Lens |
| Flash Rate | Flashing mode(20-60times/minute) |
| Operation | Dusk-to-dawn operation Automatically as standard. |
| LED Life-span Experience(hours) | >100,000hours |
| Electrical Characteristics | |
| Operating Voltage | AC220V (option voltage,eg.AC120V,AC110V,DC48V) |
| Power(W) | 3W(Night), 10W(Daytime) |
| Circuit Protection | Integrated |
| Temperature Range(℃) | -40~60 |
| Physical Characteristics | |
| Body Material | PC |
| Base Material | Die-casting aluminum |
| Mounting | Φ190 by M10. |
| Product Life Expectancy | 10 years plus |
| Environmental Factors | |
| Humidity | 0~90% |
| Wind Speed | 80m/s |
| Waterproof | IP66 |
| Compliance | |
| ICAO | Medium-intensity Type A Aviation Obstruction Light, ICAO Annex 14 Volume 1,'Aerodrome Design and Operations’ |
| FAA | Medium-intensity Type A and FAA L-865 |
Advantages
1. built-in photocell make sure the light intensity change for different opeartion environment, 20000cd at daytime, 2000cd at night.
2. Integrated automatic flash synchronisation beam optical design, so different light on the same tower could flash sync.
3. high accuracy light beam optical design, so the power is less, but the intensity is high.
4. PC material with good thermal stability, high transmittance.
5. Built-in circuit protect LED, extremely reliable and cost saving.
6. Shockproof and corrosion resistant. It can be used in very poor conditions. So it could be used whole world.
7. International-advanced cold LED technology with low power consumption, high brightness and service life of light source reaching 100000hours.
8. Resistant to heavy rain or storms.
9. Free maintenance.
Company Profile
ShenZhen Anhang Technology Company Limited is a high technology enterprise engaging in research, development, production, sales and after -sales services for a wide range of Aviation Obstruction Light, Aircraft Warning Light, Helipad Light, LED Marine Lanterns, LED Bulb and Aircraft Warning Sphere. We are a domestic market leader in the field of navigation lights and a supporter of green and safe emissions. Product strictly comply to FAA, ICAO and IALA. Using the advanced LED light to saving more electricity ,resource and make the environment more and more beautiful.
